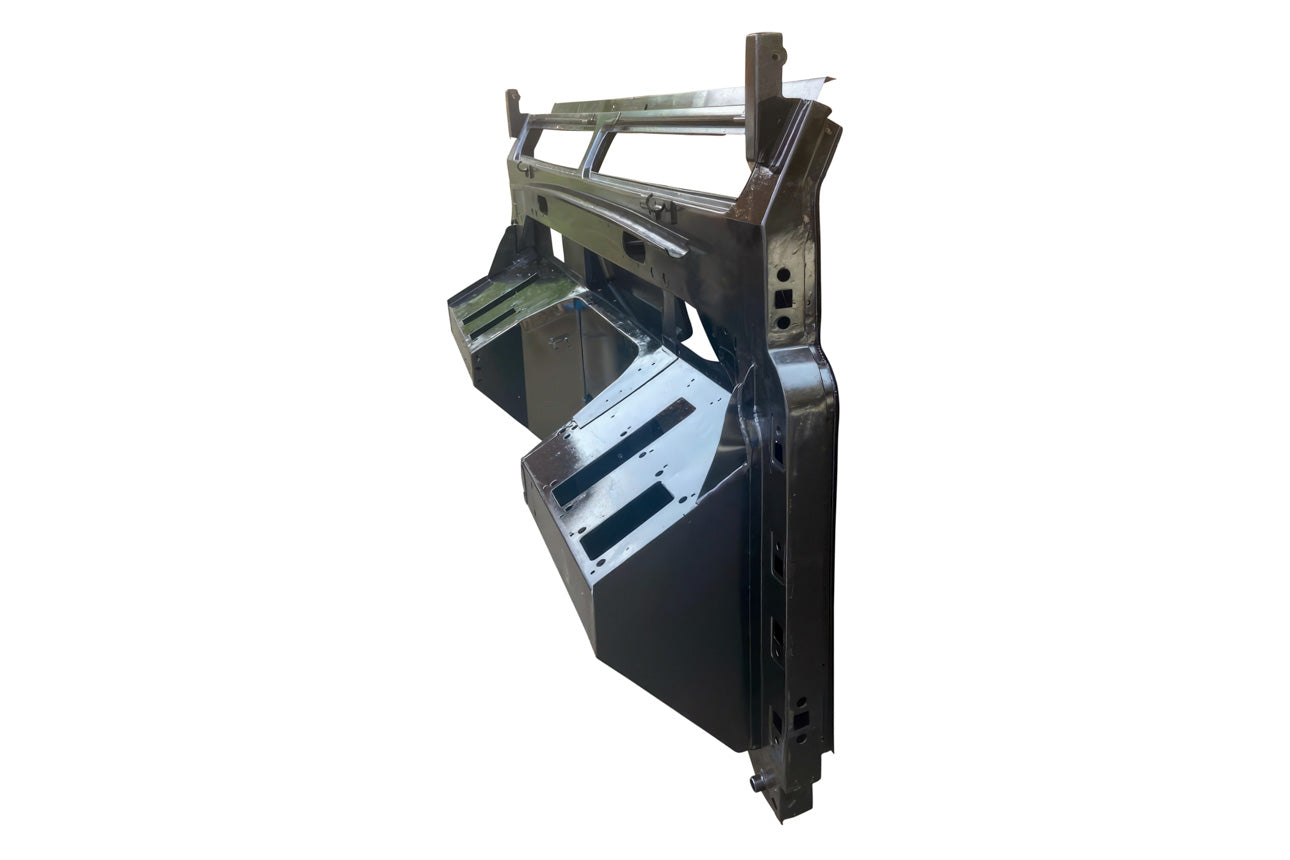

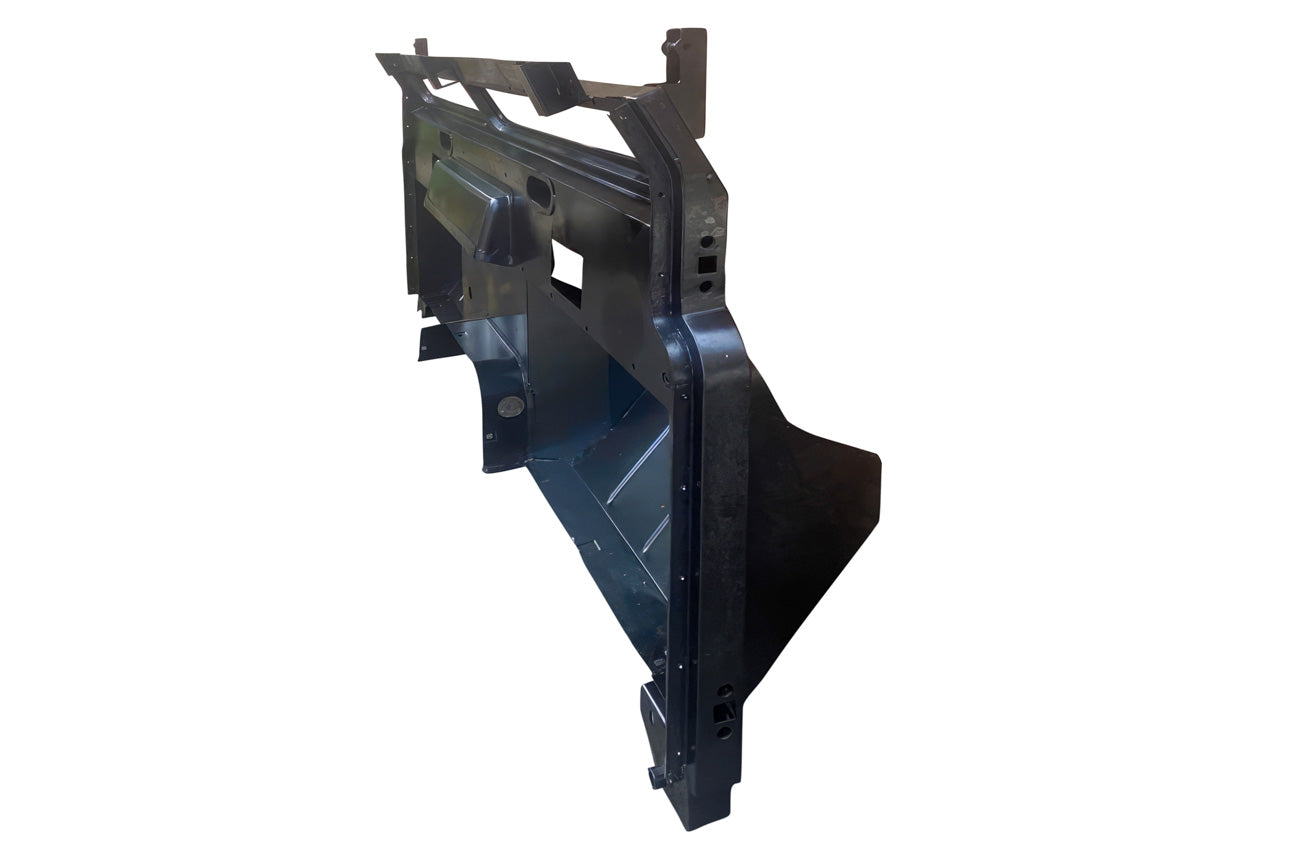

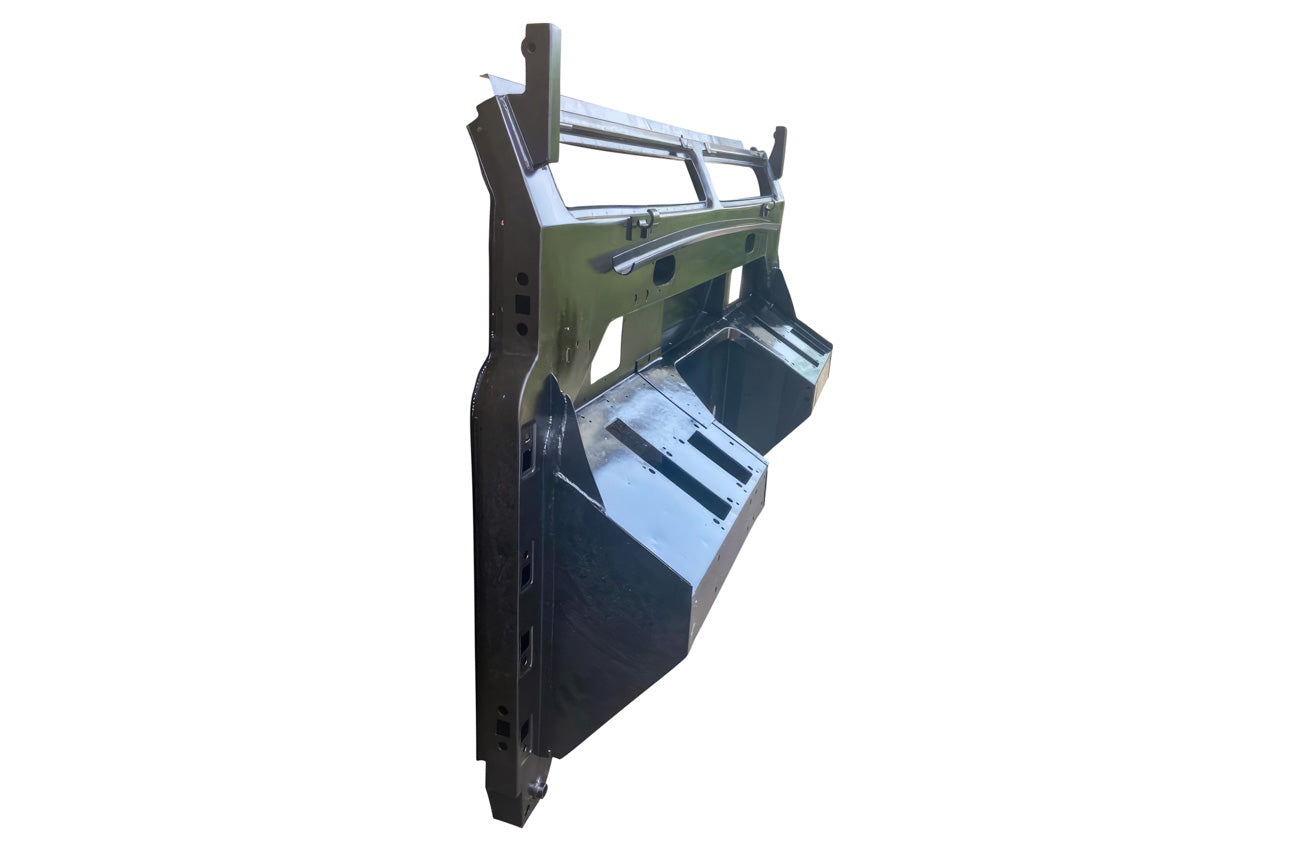

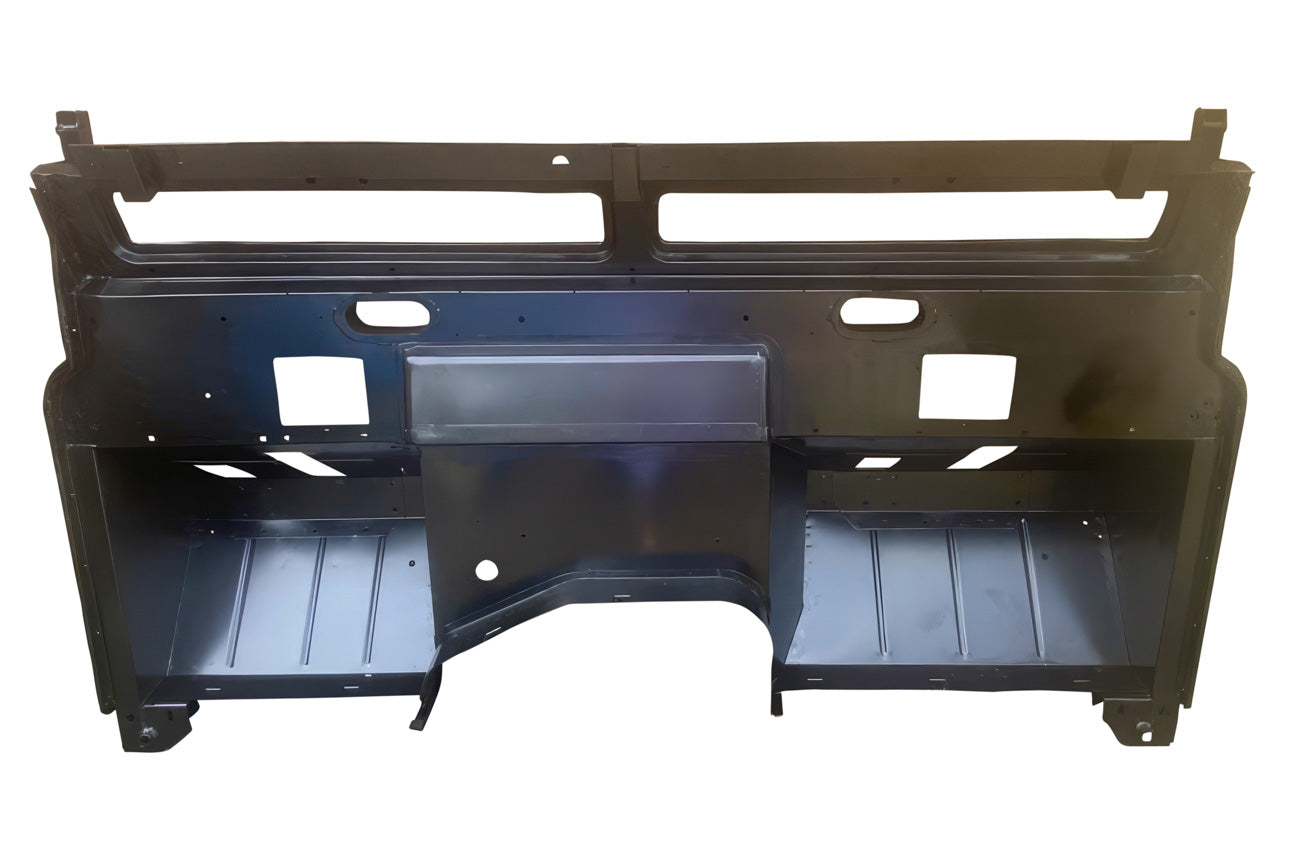

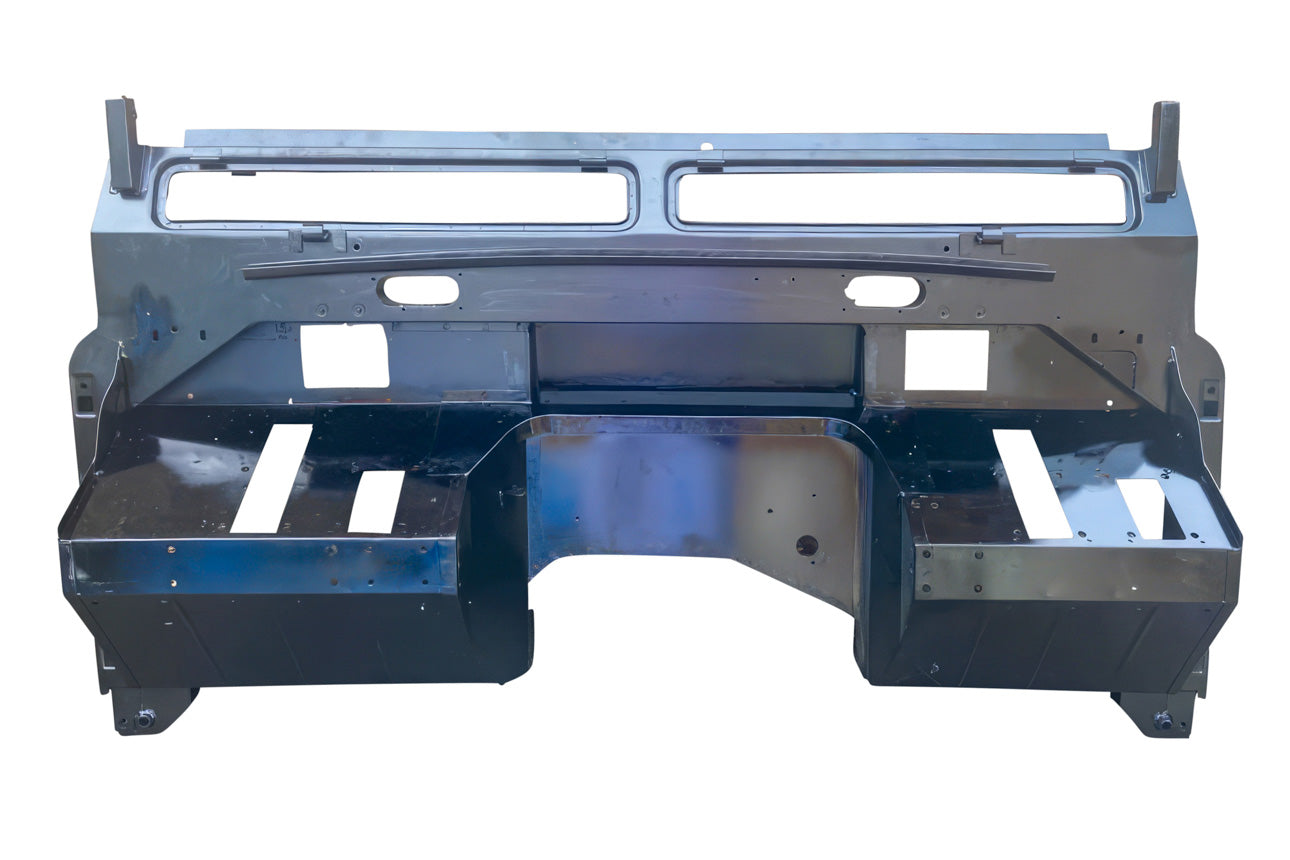

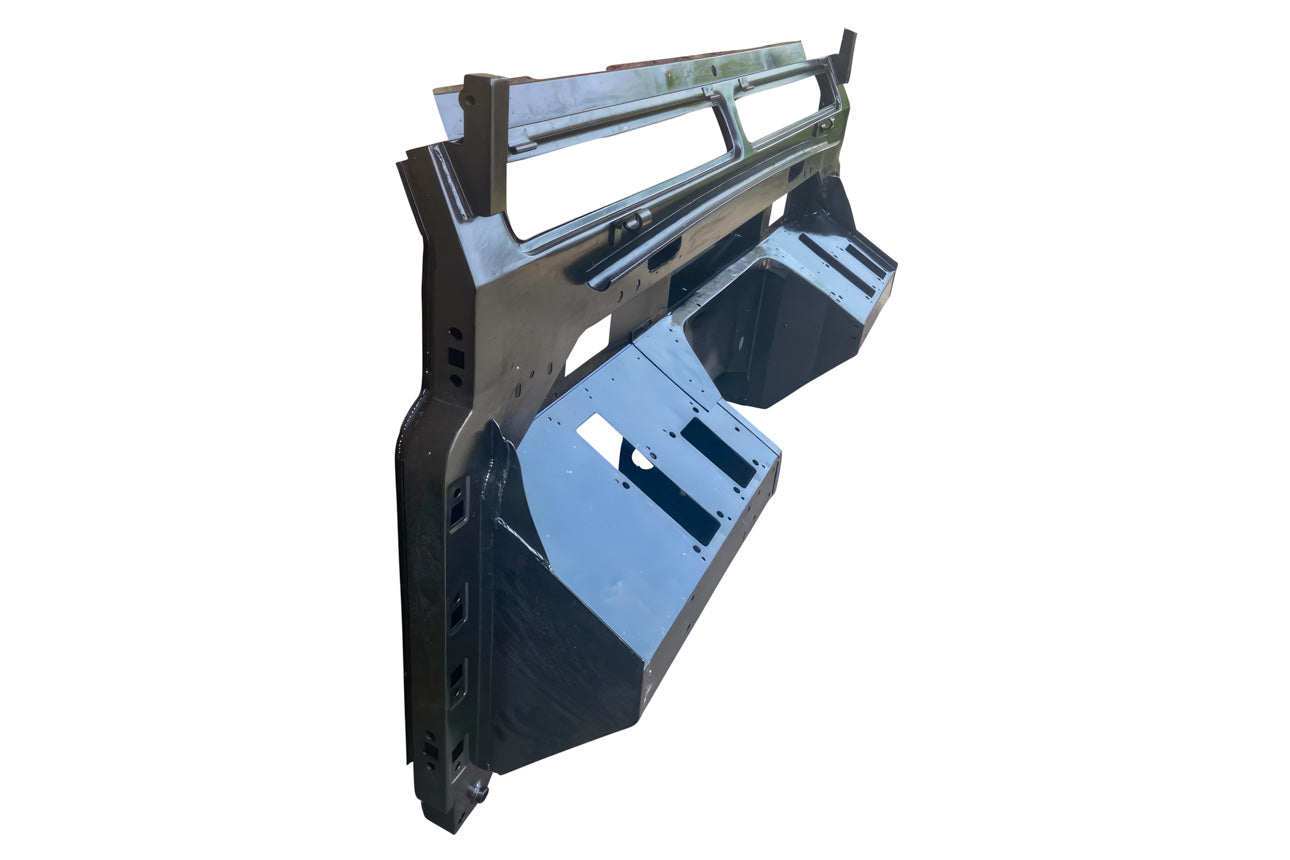

346500 (TYPE 3) - Bulkhead, Series 3, 4-cylinder, 1974 to October 1975
Click Here - to view details on the V8 converison option
-
100 Day Returns - Offering you a worry free purchase
- Long Rain Channel.
- All UNF threaded fasteners except metric Door Check captive nuts.
- Gearbox Tunnel with plain RH side, no access hole.
- Inner Ventilator Panel, Series 3 style with notched top side flanges.
- Internal Stiffeners, Series 3 style with notched sandwiched flanges.
- 'Small' wiring ducts.
Not sure which bulkhead you require?
We are here to help.
Contact Us or call 0044 151 453 6725.
We ship worldwide. All our bulkheads ship from our factory and warehouse in the UK. Shipping cost is primarily based on the destination country.
Please place your order as normal and at the checkout stage a list of shipping options and pricing will be available. If a shipping cost is not available please contact us and we will provide you with a quote from our shipping partners.

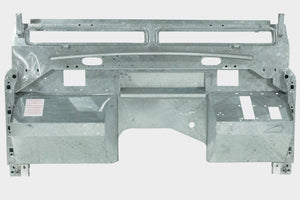

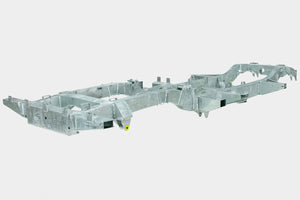

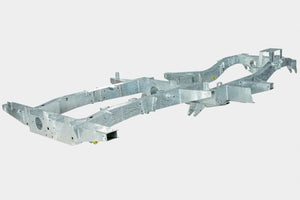

Alternative Products:
Rover V8 Conversion Details
Note: This is an optional extra you can purchase with this specific bulkhead. A standard bulkhead does not come with this.
This conversion kit allows the fitting of a Rover V8 engine.
Modifications are:
- Left Hand footwell remodelled to the pedal box reinforcement plate. Pressed ribs re-positioned to achieve a ‘factory’ finish and appearance.
- Right Hand footwell remodelled to the pedal box reinforcement plate.
- Middle Panel remodelled to clear rear of V8 engine.
- Gearbox Tunnel remodelled to clear rear of V8 engine.
- Side Panels reformed and re-folded to clear rear of V8 engine.
- Middle Gusset Panel on engine side re-profiled to match widened engine bay.
- Footwell to Gearbox Tunnel Infill Pieces, LH and RH sides.
Kit does not include the outer side panels. If required, order our part numbers PSK 3105 and PSK 3042.
This bulkhead conversion kit maximises engine bay width and rearward positioning and may also be suitable for use with non-Rover V8 engines.
Left hand footwell is reduced to a width of 352mm. This may require redesign of throttle pedal and linkage for LHD models.
